FLANGES
FLANGES

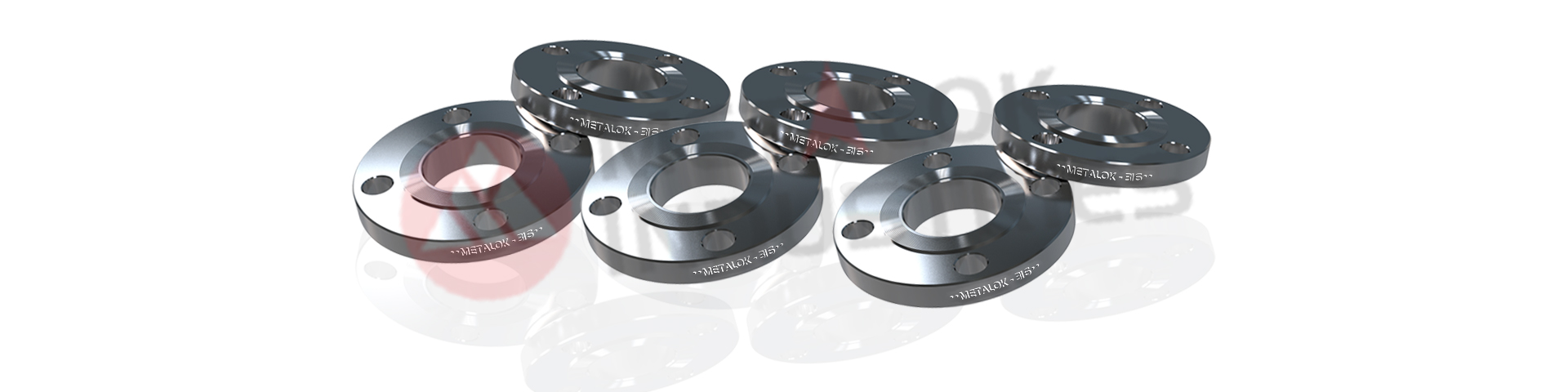

Our range of industrial flanges is manufactured to meet stringent quality standards and withstand the toughest operating conditions across sectors such as oil & gas, petrochemical, power, water treatment, and process industries. Designed for strength, durability, and leak-proof connections, our flanges are available in various types including weld neck, slip-on, socket weld, blind, lap joint, and threaded flanges. We offer a wide range of sizes, pressure ratings (ANSI, DIN, JIS, and other international standards), and material grades such as carbon steel, stainless steel (SS304/SS316), duplex, super duplex, Monel, Inconel, and other specialty alloys. Every flange is precision-machined and quality tested to ensure tight sealing, corrosion resistance, and compatibility with high-pressure, high-temperature systems. Whether you’re assembling piping systems, pressure vessels, or instrumentation setups, Metalok Industries flanges ensure secure, long-lasting connections that meet the demands of modern industrial operations.
- Manufactured to international standards (ANSI, DIN, JIS, etc.)

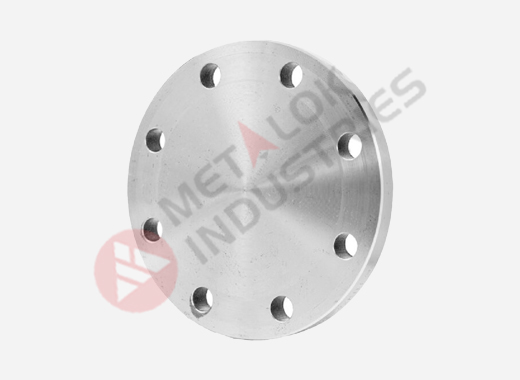

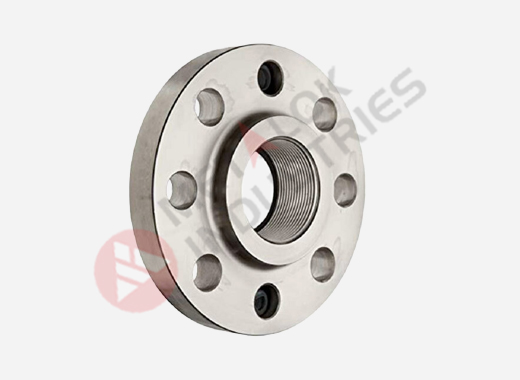

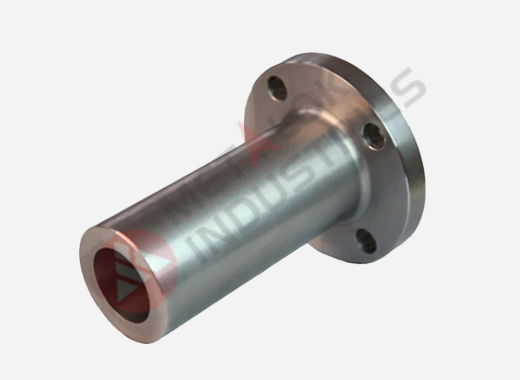

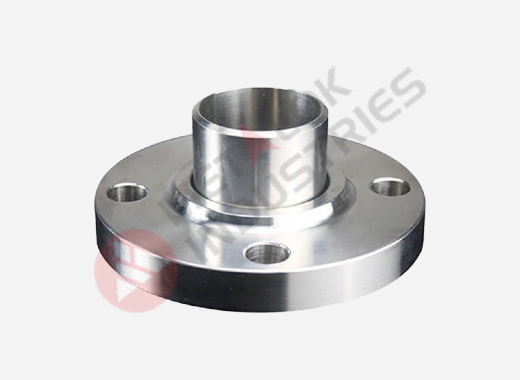

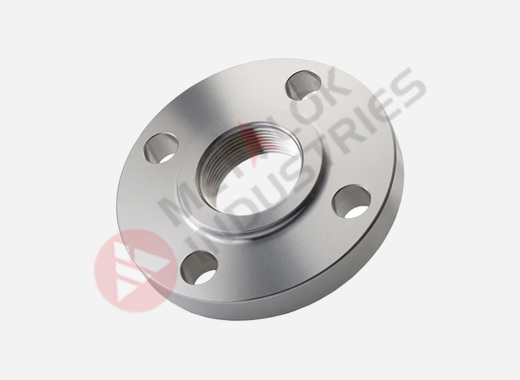

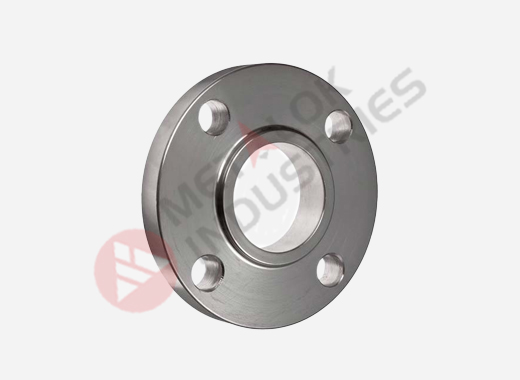

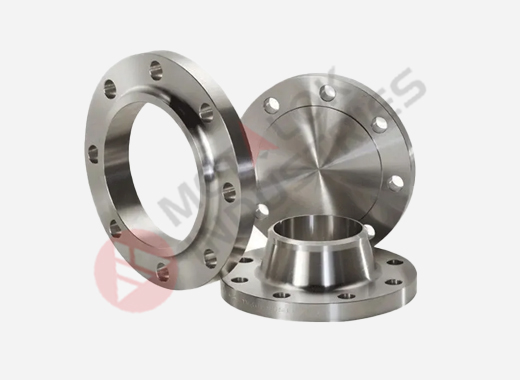

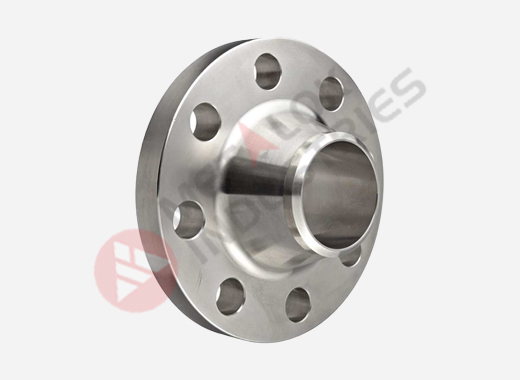

- Available in various types: weld neck, slip-on, socket weld, blind, lap joint, and threaded
- Wide range of sizes and pressure classes
- Precision-machined for accurate fit and alignment
- Offered in multiple material grades: Carbon Steel, SS304, SS316, Duplex, Super Duplex, Monel, Inconel, and other special alloys
- Corrosion-resistant finishes for extended service life
- Compatible with high-pressure and high-temperature applications
- Full traceability and material test certificates available
- Customization options available for specific application needs
- 100% quality checked and pressure tested before dispatch
- Ensures secure, leak-proof piping connections
- Enhances the mechanical strength and stability of pipeline systems
- Reduces downtime with easy installation and replacement
- Supports a variety of industrial systems and configurations
- Withstands harsh environments, including corrosive and high-stress conditions
- Long-lasting performance lowers maintenance and replacement costs
- Compliance with industry norms ensures safety and reliability
- Versatile use across multiple industries and applications
| Nominal Pipe Size (NPS) | Outside Diameter (OD) | Bolt Circle Diameter (BCD) | Number of Bolts | Bolt Hole Diameter | Flange Thickness |
|---|---|---|---|---|---|
| 1/2″ | 89 | 60.3 | 4 | 16 | 11.2 |
| 3/4″ | 98 | 69.9 | 4 | 16 | 12.7 |
| 1″ | 108 | 79.4 | 4 | 16 | 14.3 |
| 1-1/2″ | 127 | 98.4 | 4 | 16 | 16 |
| 2″ | 152 | 120.7 | 4 | 19 | 19 |
| 3″ | 190 | 152.4 | 4 | 19 | 24 |
| 4″ | 229 | 190.5 | 8 | 19 | 24 |
| 6″ | 279 | 241.3 | 8 | 22 | 25.4 |
| 8″ | 343 | 298.5 | 8 | 22 | 28.5 |
| 10″ | 406 | 362 | 12 | 25 | 30.2 |
| 12″ | 483 | 431.8 | 12 | 25 | 31.8 |
