Coils, Sheets & Plates
Products
Coils, Sheets & Plates
we supply a comprehensive range of metal coils, sheets, and plates that meet the critical requirements of fabrication, structural engineering, pressure vessels, and industrial manufacturing. Our products are available in a variety of grades, thicknesses, widths, and finishes to serve a wide spectrum of industries, including oil & gas, chemical, automotive, marine, construction, energy, and heavy machinery.
We offer hot rolled, cold rolled, precision cut, and surface-finished metal products in stainless steel, carbon steel, alloy steel, Duplex/Super Duplex, Inconel, and other nickel-based alloys. All materials are sourced and processed in compliance with global standards such as ASTM, ASME, EN, JIS, and IS.
- Wide Range of Grades
SS 304, SS 316L, A516 Gr. 70, Duplex, Inconel, Monel, and more. - Precision Cutting
CNC shearing, plasma, laser, or waterjet cutting to exact dimensions. - Surface Finishes
Includes 2B, No. 4, Hairline, Mirror Polish, or Pickled & Passivated. - Corrosion & Heat Resistance
Ideal for high-temperature and chemically aggressive environments. - Mill Test Certifications
Products supplied with 3.1 or 3.2 inspection certificates, per EN 10204.
- Customizable & Versatile
Ideal for fabrication, forming, cladding, pressure vessels, and tanks. - Excellent Flatness & Uniformity
Ensures efficient processing in rolling, bending, or cutting operations. - Enhanced Corrosion Resistance
Particularly in stainless steel and alloy grades for marine or chemical use. - Ready for Industrial Use
Delivered in standard formats or tailored to project needs. - Global Standards Compliance
Matches international requirements for export, construction, and OEM supply.
| Category | Type / Grade | Specifications |
| Metal Coils | Hot Rolled Coils (HRC) | Thickness: 0.2 mm to 10 mm | Width: up to 2000 mm |
| Cold Rolled Coils (CRC) | Thickness: 0.2 mm to 10 mm | Width: up to 2000 mm | |
| Stainless Steel Coils (SS 304, 316, 321, etc.) | Thickness: 0.2 mm to 10 mm | Width: up to 2000 mm | |

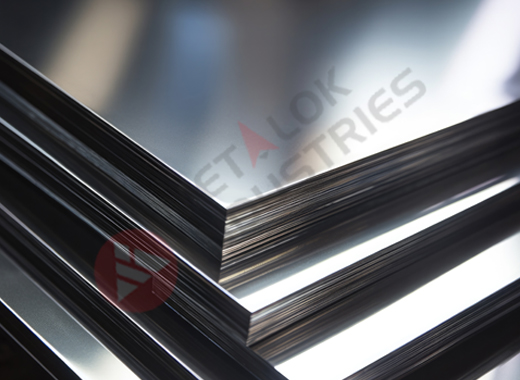

| Metal Sheets | SS, CS, and Alloy Grades | Thickness: 0.5 mm to 6 mm | Sizes: Custom or 1250×2500 mm |
| Finishes: 2B, BA, Mirror, Matte, PVC coated | ||

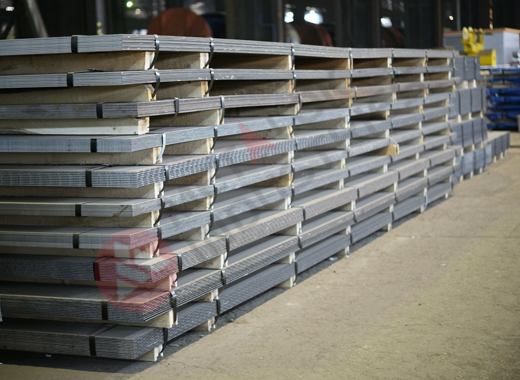

| Metal Plates | ASTM A516, A515, A36, SS 316/304, Duplex 2205 | Thickness: 6 mm to 100+ mm | Width: up to 2500 mm | Length: up to 6000 mm |
| Application: Structural, Boiler, Pressure Vessel | ||
| Coils – Dimensional Range | ||
Parameter | Hot Rolled Coil (HRC) | Cold Rolled Coil (CRC) |
| Thickness Range | 1.2 mm to 16 mm | 0.2 mm to 3.0 mm |
| Width Range | Up to 2000 mm | 600 mm to 1500 mm |
| Coil Inner Diameter | 508 mm / 610 mm | 508 mm |
| Coil Outer Diameter | Up to 2000 mm | Up to 1800 mm |
| Coil Weight | Up to 25 MT | Up to 15 MT |
| Sheets – Dimensional Range and Tolerances | ||
Parameter | Range | Tolerance (Typical – ASTM A480 / EN 10051) |
| Thickness | 0.5 mm to 6 mm | ±0.02 mm to ±0.10 mm (depending on thickness) |
| Width | 1000 mm, 1250 mm, 1500 mm | ±2 mm to ±4 mm |
| Length | 2000 mm, 2500 mm, 3000 mm | ±2 mm to ±5 mm |
| Flatness Tolerance | < 0.5% of sheet length (standard) | As per ASTM A480 / EN 10029 Class N or S |
| Diagonal Tolerance | ±3 mm to ±5 mm | Based on sheet length |
| Plates – Dimensional Range and Tolerances | ||
Parameter | Standard Plate | Tolerance (EN 10029 Class A unless noted) |
| Thickness | 6 mm to 100 mm+ | ±0.3 mm to ±1.5 mm (based on thickness) |
| Width | Up to 2500 mm | ±5 mm to ±10 mm |
| Length | Up to 6000 mm or custom | ±10 mm to ±20 mm |
| Flatness | ≤ 5 mm per meter | EN 10029 Class A or per customer request |
| Edge Condition | Mill edge / Sheared / Cut | – |
