Relief Valves
Our Relief Valves are precision-engineered safety devices designed to automatically release excess pressure from fluid systems, protecting equipment and personnel from overpressure hazards. Ideal for use in compressed air, steam, gas, hydraulic, and liquid systems, these valves ensure operational safety by maintaining system pressure within safe limits. Manufactured from high-grade stainless steel, brass, or carbon steel, and available in a range of pressure ratings and configurations, Metalok Relief Valves comply with global standards for performance and safety across industries including oil & gas, power generation, chemical, and process industries.
- Automatic Pressure Release Mechanism
Opens at pre-set pressure to prevent overpressure damage. - Corrosion-Resistant Materials
Available in SS 316, SS 304, Brass, and more for extended durability. - Compact, Robust Design
Built for space efficiency and high mechanical strength. - Multiple Pressure Settings
Available in adjustable and fixed-pressure variants. - Compliance with Standards
Conforms to ASME, API, and other international safety codes.
- Ensures System Safety
Prevents accidents, equipment failure, and downtime caused by pressure surges. - Minimizes Maintenance Costs
Reduces wear and damage to other system components. - Reliable Operation
Delivers consistent performance even under fluctuating or extreme conditions. - Easy Integration
Suitable for inline, panel, or manifold mounting across various systems. - Versatile Applications
Used across air, liquid, gas, and hydraulic systems in multiple industries.
| Sr. No. | Part Description | Material |
| 1 | Valve Body | SS316 |
| 2 | Valve Insert | SS316 |
| 3 | Seat Seal | Viton |
| 4 | Clamp Screw | SS316 |
| 5 | Valve Poppet | SS316 |
| 6 | Retainer Ring | SS316 |
| 7 | Stem Seal | Viton |
| 8 | Bonnet ‘O’ Ring | Viton |
| 9 | Valve Bonnet | SS316 |
| 10 | Spring Support Disc | SS316 |
| 11 | Spring | Stainless Steel |
| 12 | Lock Nut | SS316 |
| 13 | Adjustment Cap | SS316 |
| 14 | Cap Plug | Brass |

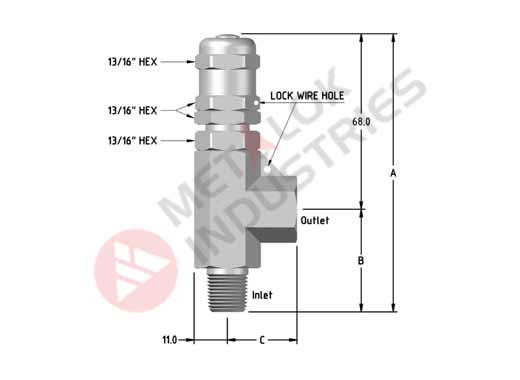

| Connection Size Inlet | Connection Size Outlet | Orifice (mm) | A (mm) | B (mm) | C (mm) |
| 1/4″ ODT | 1/4″ ODT | 3.6 | 105 | 36.6 | 40.7 |
| 1/4″ Male NPT | 1/4″ ODT | 3.6 | 98.5 | 30.2 | 40.7 |
| 1/4″ Male NPT | 1/4″ Female NPT | 3.6 | 98.5 | 30.2 | 29.7 |
| 1/4″ Male BSPT | 1/4″ Female BSPT | 3.6 | 98.5 | 30.2 | 29.7 |
| 6mm ODT | 6mm ODT | 3.6 | 105 | 36.6 | 40.7 |
| 8mm ODT | 8mm ODT | 3.6 | 105 | 36.6 | 40.7 |
