Angles, Channels & Bars
we offer a comprehensive range of Angles, Channels, and Bars that serve as essential structural and fabrication components across industries such as construction, oil & gas, infrastructure, machinery, shipbuilding, and energy. Manufactured from high-grade carbon steel, stainless steel, and alloy steels, our profiles are available in hot-rolled, cold-rolled, pickled, and polished finishes, and are supplied in compliance with international standards like ASTM, EN, IS, and BS.
These products are known for their strength, durability, and dimensional accuracy, making them ideal for load-bearing structures, frames, bracing, reinforcement, and general fabrication work.
- High Strength & Load Capacity
Suitable for structural and mechanical reinforcement. - Excellent Weldability & Formability
Easy to fabricate, bend, and cut. - Multiple Surface Finishes
Hot rolled, cold drawn, pickled, polished, or sandblasted. - Dimensional Precision
Tight tolerances for uniform weight distribution. - Available in Custom Cuts & Bundles
Tailored to suit project specifications.
- Versatile Applications
Used in construction, machinery, platforms, frames, support systems, and conveyors. - Durable in Harsh Environments
Withstands corrosion and stress in marine and industrial zones. - Cost-Effective Structural Solution
Reduces fabrication time and provides long-term performance. - Meets Global Standards
Ready for local and international supply chains and projects. - Supports Heavy-Duty Fabrication
Ideal for critical engineering structures and industrial installations.

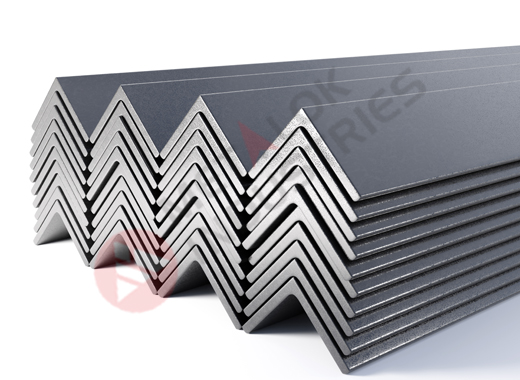

| Angle Bars (L Sections) | |
Type | Range |
| Sizes | 20 mm x 20 mm to 150 mm x 150 mm |
| Thickness | 3 mm to 20 mm |
| Types | Equal & Unequal Angles |
| Length | 6 meters (standard) / custom cut |
| Standards | ASTM A36, SS 304/316, IS 2062, EN 10056 |

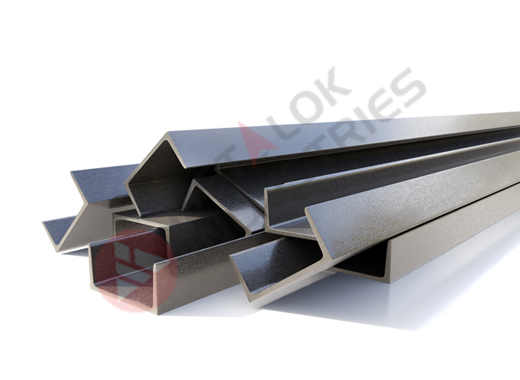

| Channels (C & U Sections) | |
Type | Range |
| Sizes (Web Height) | 75 mm to 400 mm |
| Flange Width | 40 mm to 100 mm |
| Thickness | 4 mm to 18 mm |
| Length | 6 or 12 meters (standard) / cut to size |
| Types | C Channel, U Channel, Parallel Flange |
| Standards | ASTM A36, IS 808, EN 10279 |
| Bars (Flat, Round, Square, Hex) | |
Bar Type | Size Range |
| Flat Bars | 12 mm to 200 mm wide, 3–25 mm thick |
| Round Bars | 5 mm to 200 mm diameter |
| Square Bars | 10 mm to 100 mm |
| Hex Bars | A/F 10 mm to 60 mm |
| Length | 3 to 6 meters or custom lengths |
| Grades | SS 304/316, CS A36, EN8, EN9, etc. |
| Angles (Equal & Unequal) | ||
| As per EN 10056 / IS 808 | ||
Dimension | Nominal Size Range | Tolerance |
| Leg Length | Up to 100 mm | ±1.5 mm |
| Over 100 mm to 200 mm | ±2 mm | |
| Thickness | Up to 6 mm | ±0.5 mm |
| Over 6 mm to 12 mm | ±0.75 mm | |
| Overall Length | Standard 6 or 12 meters | ±50 mm |
| Squareness (Leg Angle) | ±1.5° | |
| Channels (C / U Profiles) | ||
| As per EN 10279 / IS 808 / ASTM A6 | ||
Parameter | Size Range | Tolerance |
| Web Height (H) | ≤ 300 mm | ±2 mm |
| Flange Width (B) | ≤ 100 mm | ±1.5 mm |
| Web Thickness (T) | ≤ 12 mm | ±0.6 mm |
| Camber (per meter) | – | ≤ 2 mm |
| Length Tolerance | 6m / 12m | ±50 mm |
| Squareness | – | Within 2 mm / 100 mm |
| Flat Bars | ||
| As per EN 10058 / ASTM A484 | ||
Parameter | Size Range | Tolerance |
| Width | Up to 150 mm | ±1.5 mm |
| Thickness | Up to 25 mm | ±0.6 mm |
| Length | Standard 3–6 meters | ±50 mm |
| Edge Camber | – | ≤ 1.5 mm per meter |

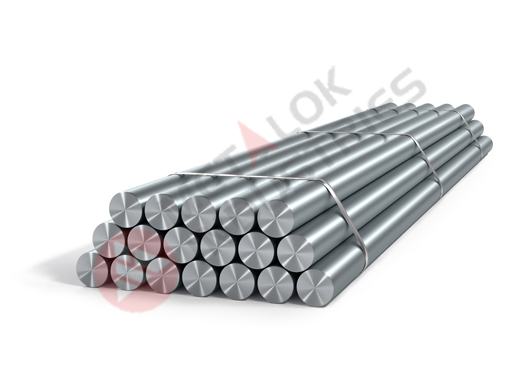

| Round Bars | |
| As per EN 10060 / ASTM A484 | |
Diameter (mm) | Tolerance (mm) |
| ≤ 25 mm | -0 / +0.4 mm |
| > 25 – 75 mm | -0 / +0.7 mm |
| > 75 mm | -0 / +1.0 mm |
| Length | 3 – 6 meters |
| Straightness | – |

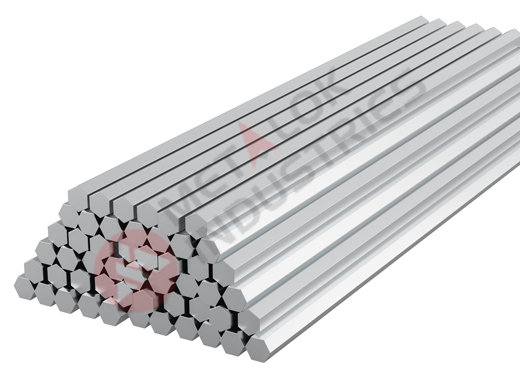

| Square & Hex Bars | |
| As per EN 10059 (Square), EN 10061 (Hex) | |
Side Across Flats (mm) | Tolerance (h11) |
| Up to 30 mm | ±0.15 mm |
| 30 mm – 50 mm | ±0.20 mm |
| Over 50 mm | ±0.30 mm |
