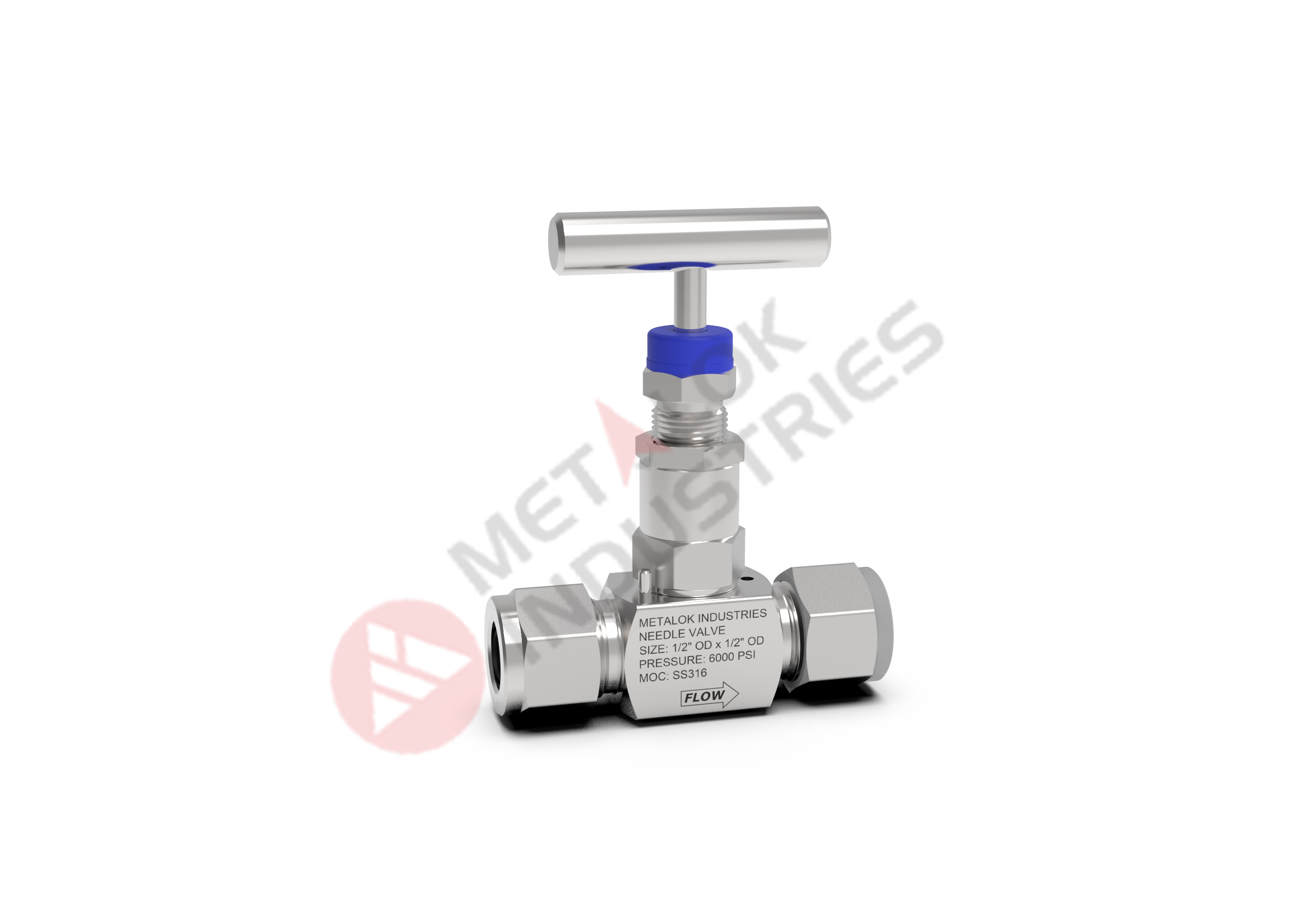

NEEDLE VALVE (OD X OD)
NEEDLE VALVE (OD X OD)
A Needle Valve (OD x OD) features tube-end connections on both inlet and outlet sides, specifically designed for direct connection to tubing rather than threaded pipe. The “OD x OD” refers to Outer Diameter x Outer Diameter tube fittings, commonly used in instrumentation and process systems that require leak-free, high-integrity connections without the use of thread sealants or welding.
This valve is ideal for precision control in systems handling gases, liquids, and steam, and is commonly used in industries like oil & gas, petrochemicals, pharmaceuticals, food processing, and power generation.
- End connections: Tube OD x Tube OD with double ferrule (compression-type) or single ferrule design.
- Sizes available: 1/8″ to 1″, 6mm to 25mm OD tubing.
- Precision needle stem: Provides accurate throttling and positive shut-off.
- Leak-tight performance: Metal-to-metal ferrule seal ensures zero leakage under pressure.
- Material options: SS316, SS304, brass, Monel, or special alloys.
- Packing material: PTFE or graphite for high temperature and chemical compatibility.
- Pressure rating: Up to 6,000 psi (414 bar), depending on size and material.
- Non-rotating stem tip: Reduces seat wear and improves sealing performance.
- Direct tube-to-tube connection simplifies installation and saves space.
- No need for threading or welding, reducing installation time and leak risks.
- Excellent for vibration-prone systems due to strong ferrule grip.
- Precise control of flow in high-pressure and high-purity applications.
- Improved reliability in instrumentation and sampling systems.
- Compatible with international tube fittings (Swagelok®, Parker®, etc.).
| Tube Size (OD) | Connection Type | Orifice Size (mm) | Pressure Rating | Typical Cv |
|---|---|---|---|---|
| 1/8″ (3.2 mm) | Double ferrule x ferrule | 1.5 – 2.0 | Up to 6,000 psi | 0.10 – 0.20 |
| 1/4″ (6.35 mm) | Double ferrule x ferrule | 2.5 – 3.0 | Up to 6,000 psi | 0.25 – 0.35 |
| 3/8″ (9.52 mm) | Double ferrule x ferrule | 3.5 – 4.0 | Up to 5,000 psi | 0.40 – 0.60 |
| 1/2″ (12.7 mm) | Double ferrule x ferrule | 4.0 – 5.0 | Up to 5,000 psi | 0.60 – 0.80 |
| 3/4″ (19.05 mm) | Double ferrule x ferrule | 5.0 – 6.0 | Up to 4,000 psi | 0.80 – 1.10 |
| 1″ (25.4 mm) | Double ferrule x ferrule | 6.0 – 8.0 | Up to 3,000 psi | 1.10 – 1.50 |
