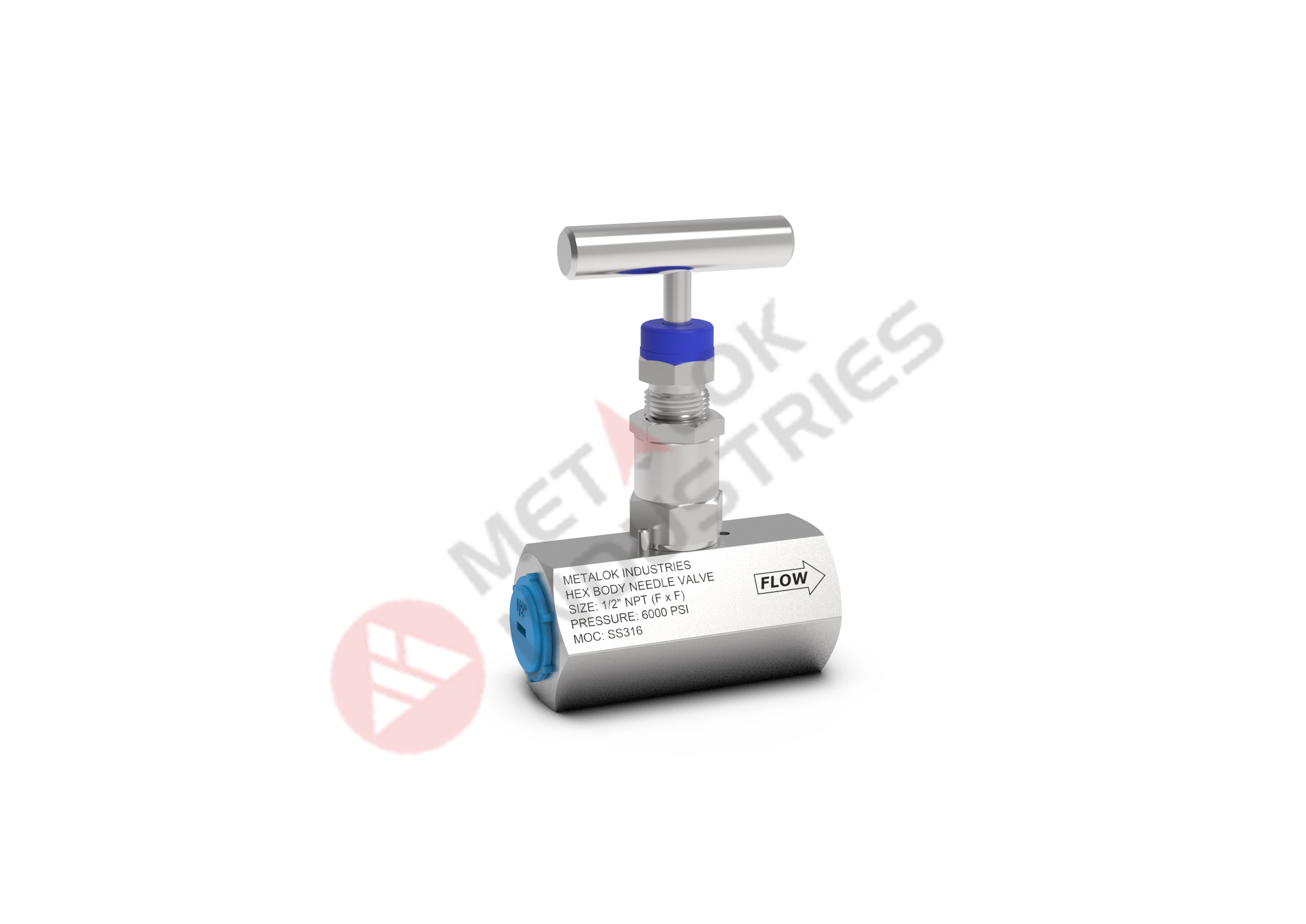

A Hex Body Needle Valve (Female x Female) is a compact, high-precision valve with a hexagonal-shaped body and female-threaded ports on both inlet and outlet sides. The hex body allows for easy wrench tightening during installation, while the needle stem provides precise flow regulation and secure shut-off.
This valve is commonly used in instrumentation systems, hydraulic and pneumatic lines, gas and fluid control, and in high-pressure testing applications across industries such as oil & gas, petrochemicals, power plants, and laboratories.
- Hexagonal body design: Enables easy gripping and installation using standard tools.
- Female x Female threaded ends: Typically available in NPT, BSP, BSPT, or metric threads.
- Tapered needle stem: Offers fine adjustment and tight shut-off capability.
- Blow-out proof stem: Ensures operational safety under high pressure.
- Non-rotating tip: Reduces seat wear and maintains sealing integrity.
- Compact size: Ideal for panel mounting and tight spaces.
- Material options: SS316, SS304, brass, carbon steel, Monel, Hastelloy, etc.
- Packing options: PTFE, graphite, or metal-to-metal sealing based on temperature and fluid compatibility.
- Pressure range: Up to 6,000 psi (414 bar), depending on size and material.
- Space-saving design for compact instrumentation systems.
- Precision flow control in both gaseous and liquid service.
- Ease of installation using standard spanner or wrench.
- Minimized risk of leakage with robust body and quality threading.
- Ideal for corrosive and high-pressure environments.
- Long service life due to durable materials and rugged design.
| Valve Size | Inlet & Outlet Thread | Orifice Size (mm) | Pressure Rating | Typical Cv |
|---|---|---|---|---|
| 1/8″ | 1/8″ NPT Female | 1.5 – 2.0 | Up to 6,000 psi | 0.10 – 0.20 |
| 1/4″ | 1/4″ NPT Female | 2.5 – 3.0 | Up to 6,000 psi | 0.25 – 0.35 |
| 3/8″ | 3/8″ NPT Female | 3.5 – 4.0 | Up to 5,000 psi | 0.40 – 0.60 |
| 1/2″ | 1/2″ NPT Female | 4.0 – 5.0 | Up to 5,000 psi | 0.60 – 0.80 |
| 3/4″ | 3/4″ NPT Female | 5.0 – 6.0 | Up to 4,000 psi | 0.80 – 1.10 |
| 1″ | 1″ NPT Female | 6.0 – 8.0 | Up to 3,000 psi | 1.10 – 1.50 |
