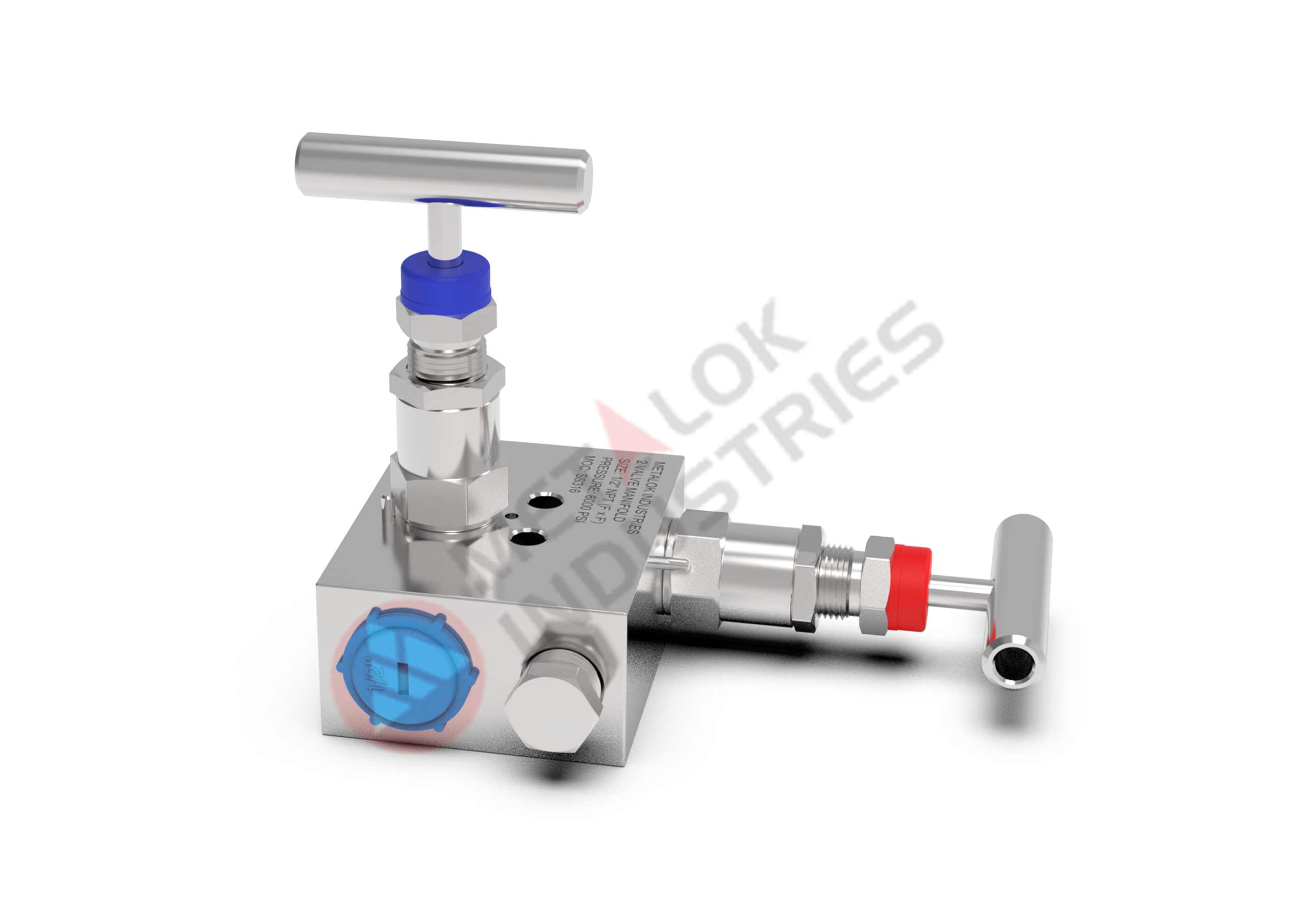

2 WAY REMOTE MOUNT VALVE (TYPE 1)
2 WAY REMOTE MOUNT VALVE
(TYPE 1)
A 2-Way Remote Mount Valve (Type 1) is a compact, high-integrity valve designed to isolate pressure instruments—such as transmitters, pressure switches, or gauges—from the process media. This valve is mounted remotely from the instrument using impulse lines, making it ideal for applications where direct mounting is restricted due to vibration, temperature, or space constraints.
It is widely used in oil & gas, petrochemical, chemical, power generation, and marine industries for safe, reliable pressure measurement and control.
- 2-Way Block Valve Functionality: One inlet and one outlet port for simple isolation.
- Remote Mount Design: Allows instrument mounting away from process lines for improved safety and accessibility.
- End Connections: Inlet: Female NPT (usually 1/4″ or 1/2″), Outlet: Female NPT (1/4″ or 1/2″)
- Precision Needle Stem: Provides smooth shut-off and excellent leak tightness.
- Non-rotating tip: Minimizes seat wear and ensures long-term sealing.
- Material Options: SS316, SS304, Monel, Hastelloy, and carbon steel.
- Pressure Rating: Up to 6,000 psi (414 bar), depending on size and material.
- Bonnet Types: Integral bonnet for compact size or screwed bonnet for easy servicing.
- Packing Options: PTFE (standard) or Graphite (high-temperature service).
- Compact Body Design: Forged or barstock construction with high mechanical strength.
- Safe Isolation of Instruments without shutting down the process.
- Improved Accessibility for maintenance and calibration.
- Reduces Exposure to Vibration and Heat, enhancing instrument life.
- Reliable Shut-off under high-pressure conditions.
- Compact & Rugged Design saves space and simplifies installation.
- Minimizes Leak Points by reducing piping and connections.
| Valve Size | Inlet Port | Outlet Port | Orifice Size | Pressure Rating | Body Material |
|---|---|---|---|---|---|
| 1/4″ | 1/4″ NPT Female | 1/4″ NPT Female | 2.5 – 3.0 mm | Up to 6,000 psi | SS316 / CS / Monel |
| 1/2″ | 1/2″ NPT Female | 1/2″ NPT Female | 4.0 – 5.0 mm | Up to 6,000 psi | SS316 / CS / Monel |
